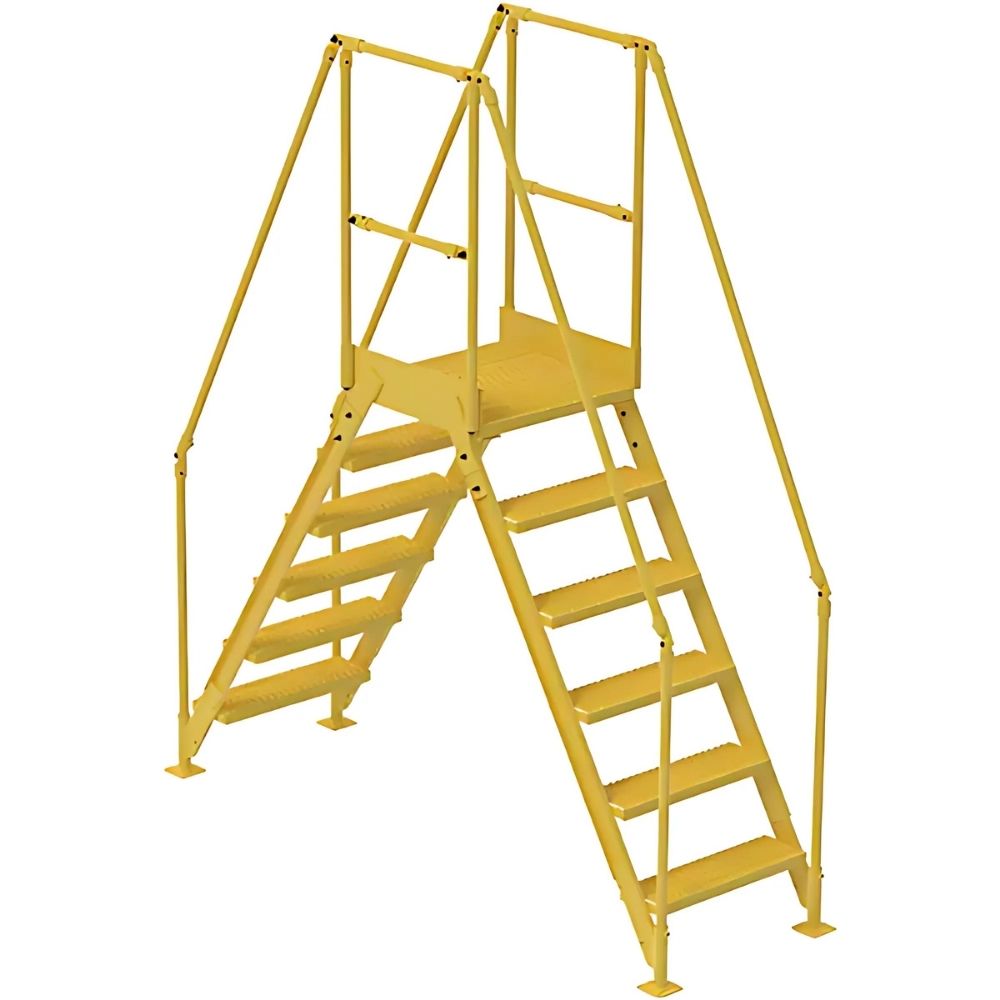

Vestil Crossover Ladder, 92" Overall Span, 60" H x 24" D, 24" Step Width

by Vestil
$3,555.00

Notify me when back in stock

Climb Over Hazards Fast with This 60" High Ladder – Slim, Safe & Ready for Tight Spaces

Description

Get over obstacles without taking up extra space. This ladder is 60" high for safe clearance over pipes, conveyors, or cables, but only 24" deep—perfect for tight spots. It’s got 24" wide steps that are easy on your feet and safe under pressure. This ladder is strong, stable, and made for non-stop use in busy work environments. Whether it's a small warehouse or a crowded shop floor, this compact crossover ladder gets the job done without getting in the way.

  • Units are made of all-welded steel construction and can be knocked-down for easy storage.
  • Upper platform features removable two sided 42" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off.
  • Serrated steps for extra grip and safety are 23 1/2" W x 7" D.
  • Ground legs include floor mounting pads.
  • Units must be anchored to the floor.

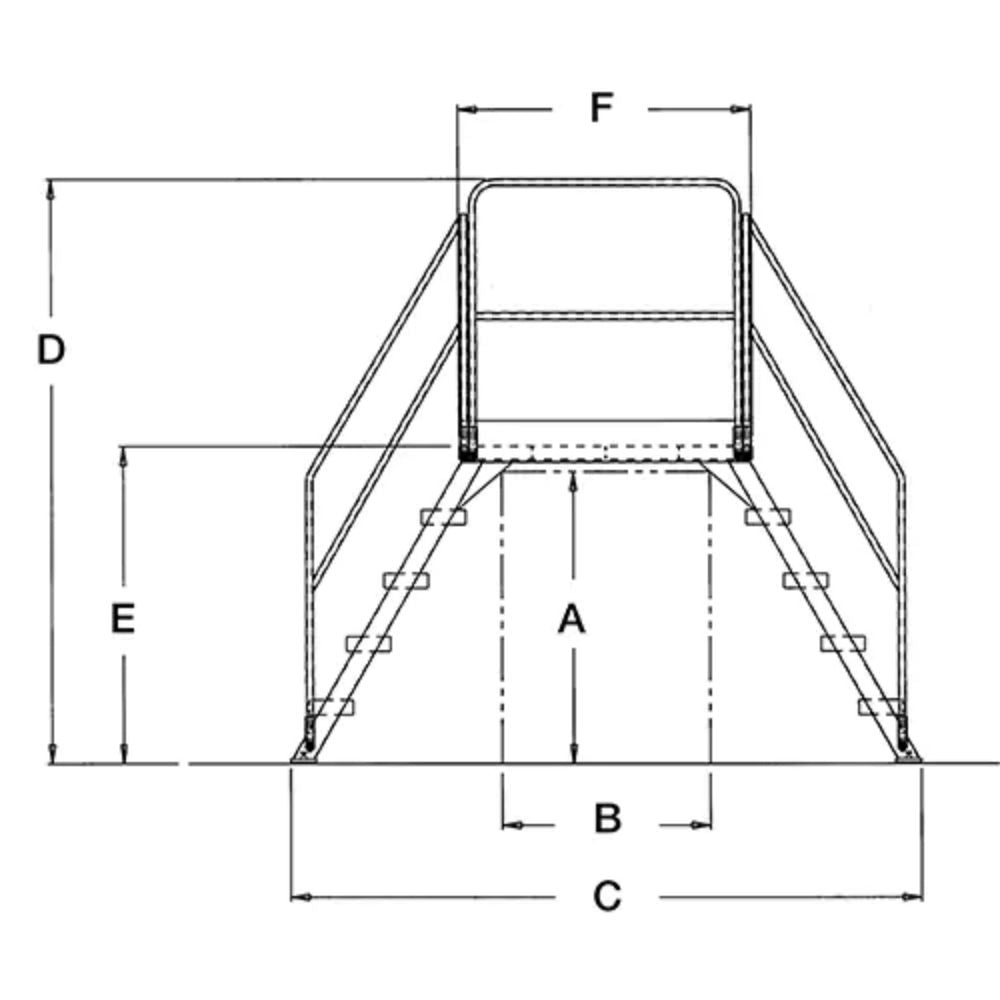

  • Overall Handrail Height D: 102 3/4 ".
  • Span (B): 14 1/2 ".
  • Made in the USA.
Specs

Overall Span: 92"

Platform Height: 60"

Platform Depth: 24"

Step Width: 24"

Capacity: 500 lbs.

Finish: Yellow powder coat finish

No. Of Steps: 6

Step Depth: 7"

Step Height: 10"

Step Angle: 58°

Handrail Height: 42"

Overall Ladder Width: 29"

Color: Powder coat yellow finish

Height (A): 58 "

Climb Over Hazards Fast with This 60" High Ladder – Slim, Safe & Ready for Tight Spaces

Description

Get over obstacles without taking up extra space. This ladder is 60" high for safe clearance over pipes, conveyors, or cables, but only 24" deep—perfect for tight spots. It’s got 24" wide steps that are easy on your feet and safe under pressure. This ladder is strong, stable, and made for non-stop use in busy work environments. Whether it's a small warehouse or a crowded shop floor, this compact crossover ladder gets the job done without getting in the way.

  • Units are made of all-welded steel construction and can be knocked-down for easy storage.
  • Upper platform features removable two sided 42" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off.
  • Serrated steps for extra grip and safety are 23 1/2" W x 7" D.
  • Ground legs include floor mounting pads.
  • Units must be anchored to the floor.
  • Overall Handrail Height D: 102 3/4 ".
  • Span (B): 14 1/2 ".
  • Made in the USA.
Specs

Overall Span: 92"

Platform Height: 60"

Platform Depth: 24"

Step Width: 24"

Capacity: 500 lbs.

Finish: Yellow powder coat finish

No. Of Steps: 6

Step Depth: 7"

Step Height: 10"

Step Angle: 58°

Handrail Height: 42"

Overall Ladder Width: 29"

Color: Powder coat yellow finish

Height (A): 58 "
