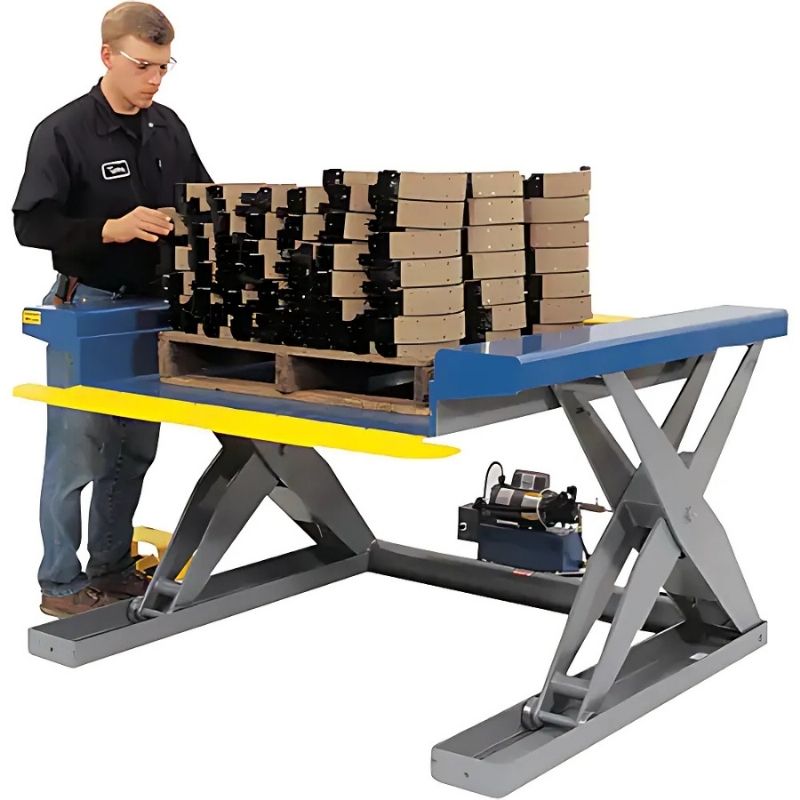

Southworth Hydraulic Floor-Height Scissor Lift Tables, Steel, 4000 lbs. Capacity
by Southworth
$21,365.00
Lift heavy loads safely with this durable floor-level scissor lift table—engineered to handle up to 4,000 lbs. without ramps, strain, or extra effort.
Description
Made to boost efficiency and reduce lifting injuries. It sits flush with the floor, so you can roll loads on and off without ramps or extra effort. Built from durable steel, it handles up to 4000 pounds with ease. The hydraulic system gives you smooth, controlled lifting every time. Great for warehouses, factories, or any place that deals with heavy materials.
- Flexible lip on leading edge of platform.
- Adjustable with a pressure sensitive flow control.
- 1.0 HP TENV electric motor and 0.85 GPM hydraulic pump, valving, and reservoir filled with oil.
- NEMA 1 footswitch with safety cover includes a 10ft straight cord.
- Two low pressure cylinders with chrome plated rod, power up/gravity down.
- All pivot points are equipped with Teflon lined bishings.
- Parts & labor are warrantied for 2 years.
- Light gray self-priming machinery enamel for base and legs with platform painted OSHA blue.
- Made in the USA.
Specs
Platform Dimensions: 50" W x 48" L
Capacity: 4000 lbs.
Raised Height: 35.375"
Lowered Height: 0.375"
Frame Material: Steel
Base Length: 53"
Base Width: 67.25"
Overall Height: 7.75"
Overall Length: 59"
Overall Width: 67.25"
Vertical Travel: 35"
Elevating Time (seconds): 48
Primary Voltage: 115/1/60
Weight: 1440 lbs.
